Loving design for children pediatric pulse oximeter AH-50QA

Loving design for children pediatric pulse oximeter AH-50QA

    • Loving design for children pediatric pulse oximeter AH-50QA
    • Loving design for children pediatric pulse oximeter AH-50QA
    • Loving design for children pediatric pulse oximeter AH-50QA
    • Loving design for children pediatric pulse oximeter AH-50QA
    • Loving design for children pediatric pulse oximeter AH-50QA
    • Loving design for children pediatric pulse oximeter AH-50QA
  • Loving design for children pediatric pulse oximeter AH-50QA

    Product Details:

    Place of Origin: GUANDONG,CHINA
    Brand Name: HUGE OEM ODM
    Certification: CE RoHS
    Model Number: AH-50QA

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: 23-30USD/PC
    Packaging Details: box
    Delivery Time: 5-7days
    Payment Terms: TT /paypay/ Western Union
    Supply Ability: 10000pcs/weeks
    Contact Now
    Detailed Product Description



    Pulse oximeter

    Model:AH-50QA



    Major Features
    *Integrated with SpO2 probe and processing display module
    *Small in volume,light in weight and convenient in carrying
    *Operation of the product is simple ,low power consumption
    *SpO2 value display
    *Pulse rate value display, bar graph display
    *A pulse rate sound indication
    *With measured data overruns limits and low-voltage alarm function
    *Low-voltage indication: low-voltage indicator appears before working abnormally which is due to low-voltage, and with alarm function
    *Automatically power off function: when the device is under the state of measuring interface . it will automatically power off within 5 seconds if the finger falls out of probe
    *Small appearance,more fit for children

    Main performance
    Display Mode: TN segment LCD display
    SpO2 Measuring Range: 0%~100%, (the resolution is 1%).
    Accuracy: 70%~100%:+/-2% ,Below 70% unspecified.
    PR Measuring Range: 30bpm~250bpm, (the resolution is 1bpm)
    Accuracy: +/-2bpm or +/-2% (select larger)
    Measurement Performance in Weak Filling Condition:
    SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is +/-4%, pulse rate error is +/-2 bpm or +/-2% (select larger).
    Resistance to Surrounding Light: The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less than +/-1%.
    Power Consumption: less than 70mA
    Voltage: DC 3.6V~4.2V
    Power Supply: Voltage 3.6 rechargeable lithium battery * 1
    Battery Working Hour: 10 hours
    Battery working life: Charge and discharge no less than 300 times.
    Safety Type: Interior Battery, BF Type

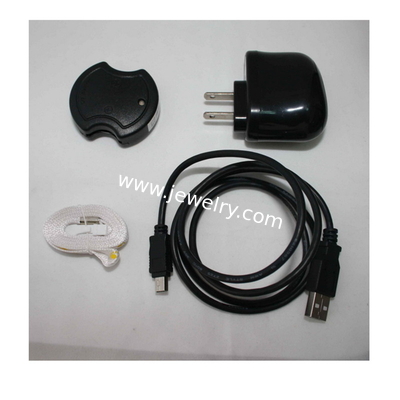

    Accessories
    Sell in standard:
    *A hanging rope
    *A user manual
    *One rechargeable buttony lithium battery
    *Charge accessories: One power adapter, one charger, one data line

    Physical Identity
    Dimension: 46(L) * 40(W) * 29(H) mm
    Weight: About 35g (with a buttony lithium battery)

    Qualification
    Passed CE



    Loving design for children pediatric pulse oximeter AH-50QALoving design for children pediatric pulse oximeter AH-50QALoving design for children pediatric pulse oximeter AH-50QALoving design for children pediatric pulse oximeter AH-50QA
