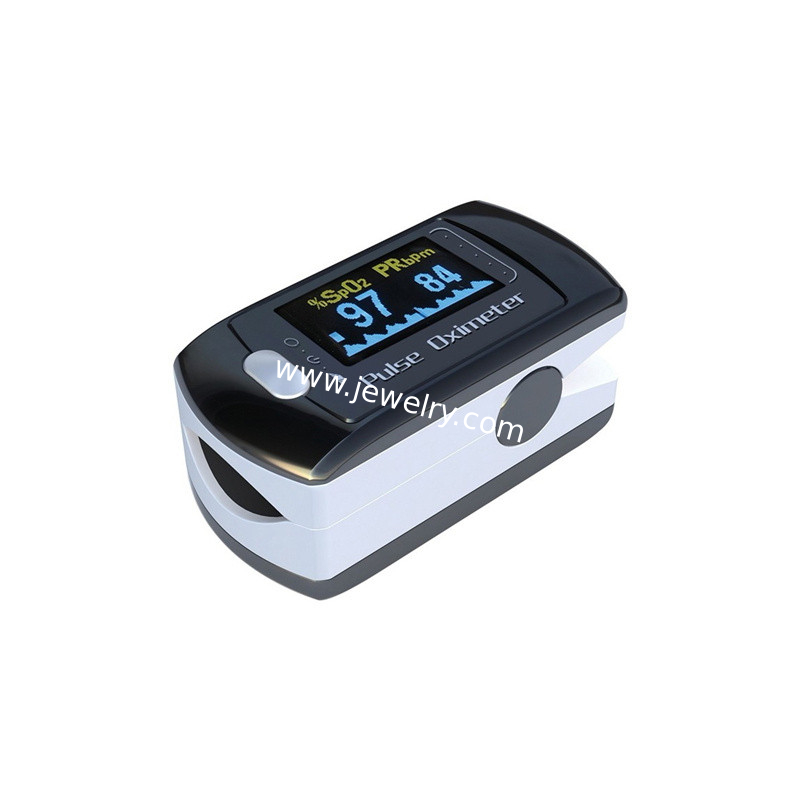

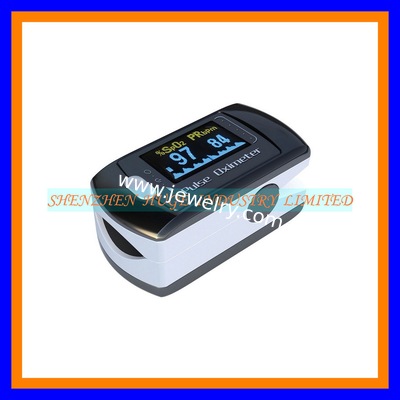

lithium battery charging 20 hours detection with Color display pulse oximeter AH-50ED

lithium battery charging 20 hours detection with Color display pulse oximeter AH-50ED

    • lithium battery charging 20 hours detection with Color display pulse oximeter AH-50ED
    • lithium battery charging 20 hours detection with Color display pulse oximeter AH-50ED
    • lithium battery charging 20 hours detection with Color display pulse oximeter AH-50ED
  • lithium battery charging 20 hours detection with Color display pulse oximeter AH-50ED

    Product Details:

    Place of Origin: GUANDONG,CHINA
    Brand Name: HUGE OEM ODM
    Certification: CE RoHS
    Model Number: AH-50ED

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: 40-46USD/PC
    Packaging Details: box
    Delivery Time: 5-7days
    Payment Terms: TT /paypay/ Western Union
    Supply Ability: 10000pcs/weeks
    Contact Now
    Detailed Product Description



    Pulse oximeter

    Model:AH-50ED



    Instructions

    Principle of this Pulse Oximeter is as follows:Photoelectric Oxyhemoglobin Inspection Technology is adopted in accordance with Capacity Pulse Scanning & Recording Technology,the Pulse Oximeter can be used in measuring the pulse oxygen saturation and pulse rate through finger.The product is suitable for being used in family, hospital, oxygen bar, community healthcare, physical care in sports (It can be used before or after doing sports, and it is not recommended to use the device during the process of having sport) and etc.

    Major Features

    *Integrated with SpO2 probe and processing display module

    *Small in volume,light in weight and convenient in carrying

    *Operation of the product is simple ,low power consumption

    *SpO2 value display

    *Pulse rate value display, bar graph display

    *Pulse waveform display

    *The display mode can be changed

    *Screen brightness can be changed

    *Low-voltage indication:low-voltage indicator appears before working abnormally which is due to low-voltage

    *Automatically power off function:when the device is under the state of measuring interface . it will automatically power off within 5 seconds if the finger falls out of probe.

    *Display format can be saved after power off



    Main performance

    *Display Mode:0.96" Dual-color OLED display(blue and yellow)

    *Screen Resolution:128*64

    *SpO2 Measuring Range:0%~100%, (the resolution is 1%).

    *Accuracy:70%~100%:±2% ,Below 70% unspecified.

    *PR Measuring Range:30bpm~250bpm, (the resolution is 1bpm)

    *Accuracy:±2bpm or ±2% (select larger)

    *Measurement Performance in Weak Filling Condition:SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is ±4%, pulse rate error is ±2 bpm or ±2% (select larger).

    *Resistance to surrounding light:The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less than ±1%.

    *Power Consumption:less than 30mA

    *Voltage:DC 3.6V~4.2V

    *Power Supply:Voltage 3.7 rechargeable lithium battery X 1

    *Battery working hour:Theoretical number is 20 hours.

    *Battery working life:Charge and discharge no less than 300 times.

    *Safety Type:Interior Battery,BF Type



    Accessories

    Sell in standard

    *A hanging rope

    *A user manual

    *A data line

    *a power adapter(GTM41076-0605;CMS0105)



    Physical Identity

    Dimension:57 (L) X 32(W X 30(H) mm

    Weight:About 50g (with a lithium battery)





    lithium battery charging 20 hours detection with Color display pulse oximeter AH-50ED
