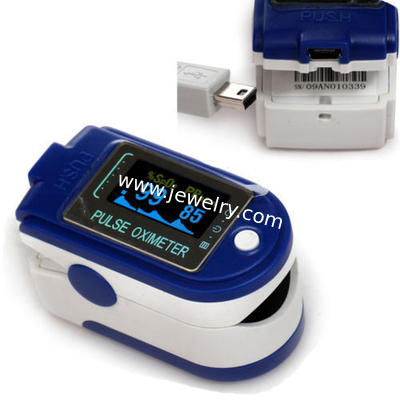

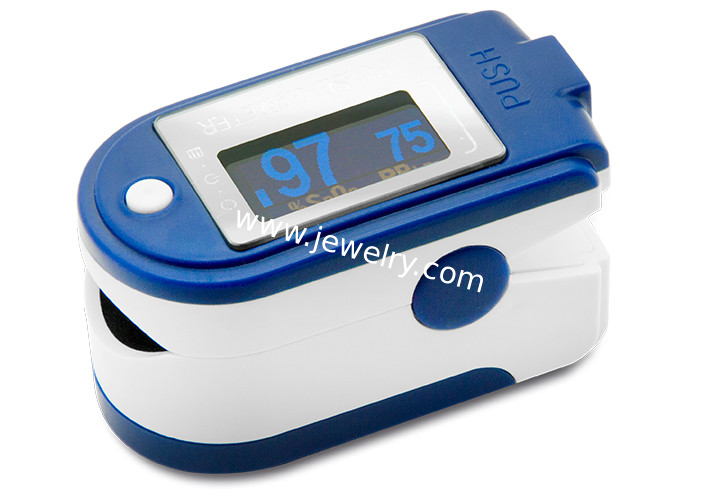

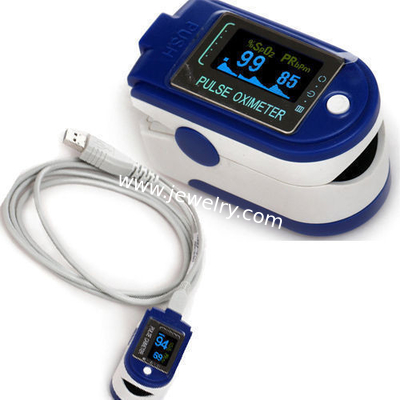

CMS50D+ CE FDA Fingertip Pulse Oximeter SPO2 USB Software OLED Display 24 Hours Record Pulse Rate Alarm Monitor

CMS50D+ CE FDA Fingertip Pulse Oximeter SPO2 USB Software OLED Display 24 Hours Record Pulse Rate Alarm Monitor

Model No.: CMS50D plus

Major Features

*Integrated with SpO₂ probe and processing display module
*Small in volume ,light in weight and convenient in carrying
*Operation of the product is simple ,low power consumption
*Operation menu for the function setting
*SpO₂ value display
*Pulse rate value display, bar graph display
*Pulse waveform display
*The display mode can be changed
*A pulse rate sound indication
*With measured data overruns limits and low-voltage alarm function, the upper/down alarm range is adjustable
*Low-voltage indication: low-voltage indicator appears before working abnormally which is due to low-voltage, and with alarm function
*With SpO₂ value and pulse rate value of storage, the storage data can be uploaded to computers
*Real-time data can be transmitted to computers
*Automatically power off function: when the device is under the state of measuring interface . it will automatically power off within 5 seconds if the finger falls out of probe
*RF Wireless communication function(Option)
*Connected with an external oximeter probe(Option)

Main performance

Display Mode: 0.96" Dual color OLED display
Screen Resolution: 128*64
SpO₂ Measuring Range: 0%~100%, (the resolution is 1%).
Accuracy: 70%~100%: +/-2% ,Below 70% unspecified.
PR Measuring Range: 30bpm~250bpm, (the resolution is 1bpm)
Accuracy: +/-2bpm or +/-2% (select larger)
Measurement Performance in Weak Filling Condition:
SpO₂ and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO₂ error is +/-4%, pulse rate error is +/-2 bpm or +/-2% (select larger).
Resistance to Surrounding Light: The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less than +/-1%.
Power Consumption: less than 80mA
Voltage: DC 3.0V
Power Supply: 1.5V (AAA size) alkaline batteries *2
Battery Working Hour: The minimum continually work time is 24 hours , theoretical number is 32 hours.
Safety Type: Interior Battery, BF Type

Accessories

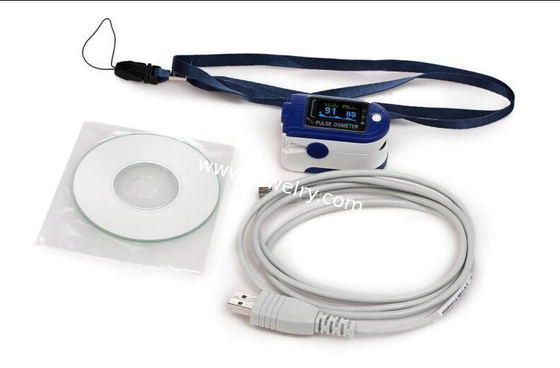

Sell in standard:
*A hanging rope
*A user manual

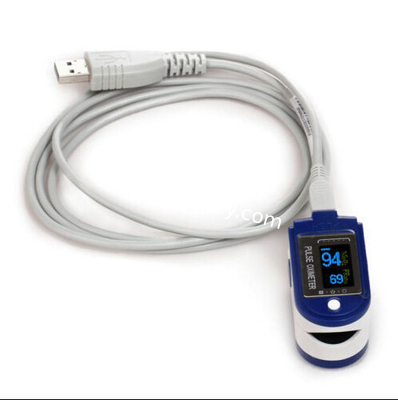

*A data line
*A disk (PC software)
Sell in addition:
*RF wireless module
*Oximeter probe(Refer to probe application instruction for details and notice renewal)

Noted:

the pulse oximeter you receive not include battery,as the standard air post can not ship it.

Physical Identity

Dimension: 58.5(L) *31(W) *32 (H) mm
Weight: About 52g (with the batteries)

Qualification

Passed CE
