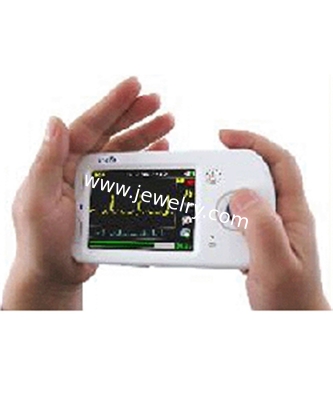

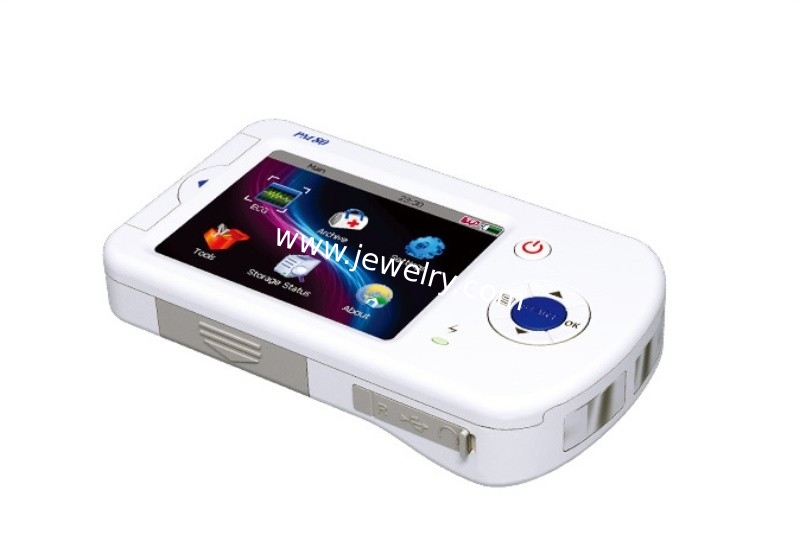

sphygmomanometer 3.5-inch color TFT touch-screen 3 in 1 blood pressure monitor Pulse Rate,SpO2,ECG Patient Monitor
Model no.: PM80
Introduction
PM80 Portable ECG Monitor mainly faces families and individuals. It can record, analyse and display ECG waveform when consumers hearts are exceptional, catchingexceptional ECG waveform, providing gist for diagnosing. The product isn't belong to medical device, only used to detect ECG momentarily.
Production Characteristic:
◆3.5-inch color TFT touch-screen.
◆Adopting built-in electrode can observe single-lead ECG waveform fast.
◆Continuous ECG monitoring mode.
◆Achieving separate ECG,Oximeter collection and mixed collection.
◆Analyse accurately, display intuitionistic and pellucid.
◆Integrated case manage function, review, delete, storage case.
◆TF mass memory medium.
◆Carry through diversified settings according to user needs.
◆Have divers form system tools, in order to provide more close service to user.
◆Have mass rechargeable li-polymer battery.
Primary Technical Guide Line:
ECG:
◆Calibration Voltage: 1mV ± 5%.
◆Standard Sensitivity: 10mm/mV ± 5%.
◆Noise Level: ≤30μV.
◆Common-mode rejection ratio: ≥ 60 dB.
◆Scan rate: 25mm/s ± 5%.
◆Sampling frequency: no less than 400point/s.
◆Enduring polarization voltage: ±500mV
Oximeter:SpO2:
◆Measuring Range: 0~100%
◆Absolute error permit ± 2%, the metrical results display in the range with 70%~100%.
◆Less than 70% is not defined.
Pulse Rate:
◆Measuring range: 35bpm~250bpm.
◆Error ± 2bpm or 2% which is greater.
Accessories:
Sell in standard:
◆A user manual
◆2GB T-Flash card
◆ECG Cable
◆disposable electrodes
◆High-quality bag
◆A power adapter(5V/1A)
◆A data line
◆A disk (PC software)
Sell in addition:
◆An oximeter probe
◆bluetooth
Physical Identity
◆Dimension: 131mm (L) × 74 mm(W) × 28mm (H)
◆Weight: About140g
Qualification
Passed FDA/CE
