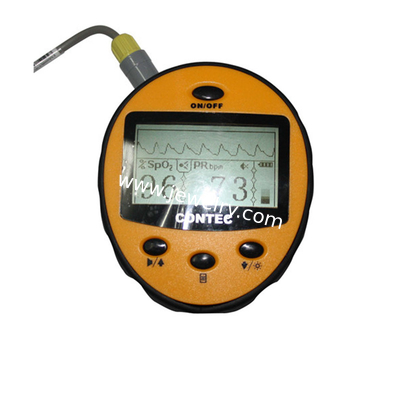

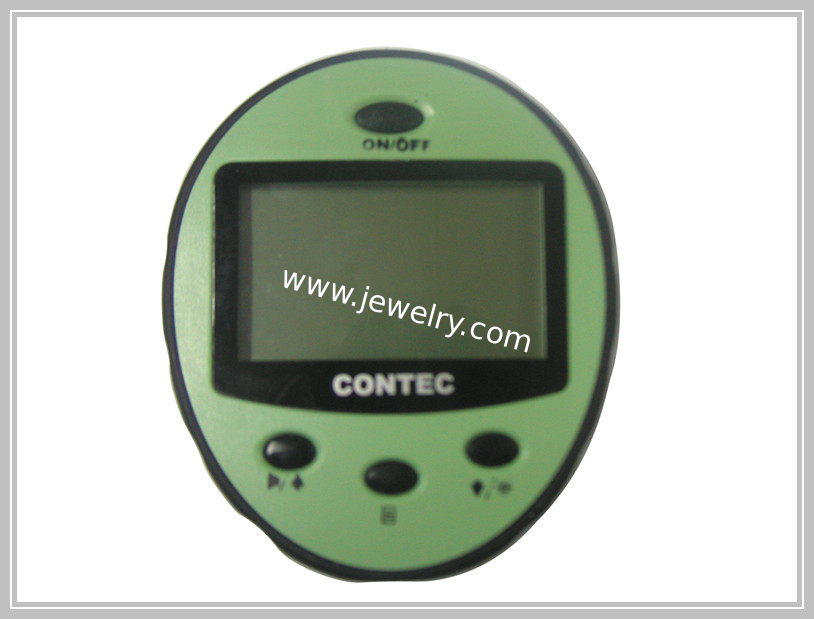

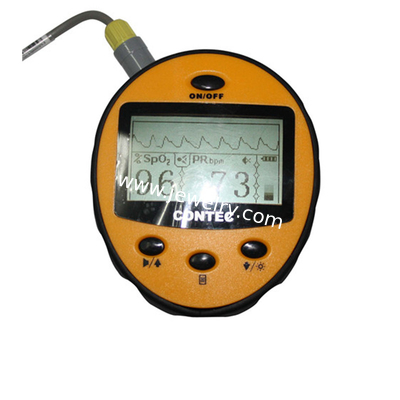

Handheld pulse oximeter 3.5‘’color TFT display Built-in recharge Li-Polymer AH-60A

Handheld pulse oximeter 3.5‘’color TFT display Built-in recharge Li-Polymer AH-60A

    • Handheld pulse oximeter 3.5‘’color TFT display Built-in recharge Li-Polymer AH-60A
    • Handheld pulse oximeter 3.5‘’color TFT display Built-in recharge Li-Polymer AH-60A
    • Handheld pulse oximeter 3.5‘’color TFT display Built-in recharge Li-Polymer AH-60A
    • Handheld pulse oximeter 3.5‘’color TFT display Built-in recharge Li-Polymer AH-60A
    • Handheld pulse oximeter 3.5‘’color TFT display Built-in recharge Li-Polymer AH-60A
    • Handheld pulse oximeter 3.5‘’color TFT display Built-in recharge Li-Polymer AH-60A
    • Handheld pulse oximeter 3.5‘’color TFT display Built-in recharge Li-Polymer AH-60A
  • Handheld pulse oximeter 3.5‘’color TFT display Built-in recharge Li-Polymer AH-60A

    Product Details:

    Place of Origin: GUANDONG,CHINA
    Brand Name: HUGE OEM ODM
    Certification: CE RoHS
    Model Number: AH-60A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: 62-70USD/PC
    Packaging Details: box
    Delivery Time: 5-7days
    Payment Terms: TT /paypay/ Western Union
    Supply Ability: 10000pcs/weeks
    Contact Now
    Detailed Product Description



    Pulse oximeter

    Model:AH-60A


    Major Features

    *Small in volume,light in weight and convenient in carrying
    *Operation of the product is simple ,low power consumption
    *Operation menu for the function setting
    *SpO2 value display
    *Pulse rate value display, bar graph display
    *Pulse waveform display
    *With backlight
    *A pulse rate sound indication
    *With measured data overruns limits and low-voltage alarm function, the upper/down alarm range is adjustable
    *Battery capacity indication
    *Low-voltage indication: low-voltage indicator appears before working abnormally which is due to low-voltage ,and with alarm function
    *Real-time data can be transmitted to computers(Option)

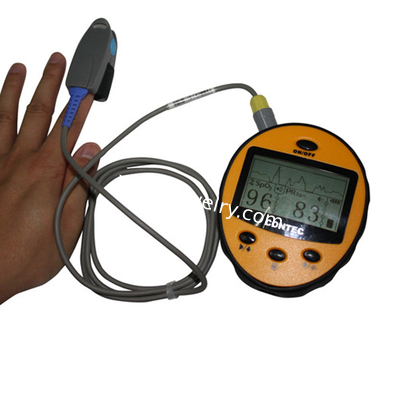

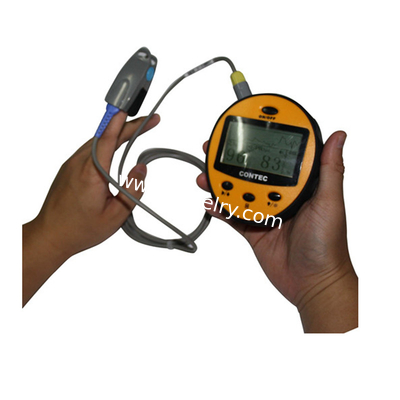

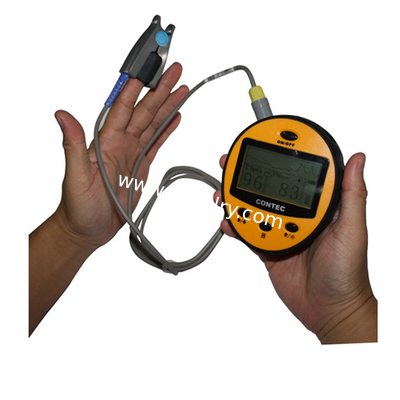

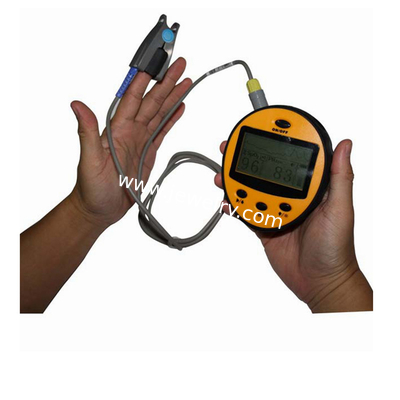

    *Connected with an external oximeter probe

    Main performance

    Display Mode: LCD display
    Screen Resolution: 160*96
    SpO2 Measuring Range: 0%~100%, (the resolution is 1%).
    Accuracy: 70%~100%: +/-2% ,Below 70% unspecified.
    PR Measuring Range: 30bpm~250bpm, (the resolution is 1bpm)
    Accuracy: +/-2bpm or +/-2% (select larger)
    Measurement Performance in Weak Filling Condition:
    SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is +/-4%, pulse rate error is +/-2 bpm or +/-2% (select larger).
    Resistance to Surrounding Light: The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less than +/-1%.
    Power Consumption: less than 80mA
    Voltage: DC 3.0V
    Power Supply: 1.5V (AA size) alkaline batteries * 2
    Battery Working Hour: Two batteries can work continually for 28 hours(without backlight)
    Safety Type: Interior Battery, BF Type


    Accessories

    Sell in standard:
    *A user manual
    *An oximeter probe
    Sell in addition:
    *A data line
    *A disk (PC software)
    *Other oximeter probe(Refer to probe application instruction for details and notice renewal)

    Physical Identity
    Dimension: 109(L) * 95(W) * 40(H) mm
    Weight: About 215g (with the batteries)

    Qualification

    Passed CE



    Handheld pulse oximeter 3.5‘’color TFT display Built-in recharge Li-Polymer AH-60AHandheld pulse oximeter 3.5‘’color TFT display Built-in recharge Li-Polymer AH-60AHandheld pulse oximeter 3.5‘’color TFT display Built-in recharge Li-Polymer AH-60AHandheld pulse oximeter 3.5‘’color TFT display Built-in recharge Li-Polymer AH-60A
