| Place of Origin: | GUANDONG,CHINA |
| Brand Name: | HUGE OEM ODM |
| Certification: | CE RoHS |
| Model Number: | AH-50QB |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 23-30USD/PC |
| Packaging Details: | box |
| Delivery Time: | 5-7days |
| Payment Terms: | TT /paypay/ Western Union |
| Supply Ability: | 10000pcs/weeks |

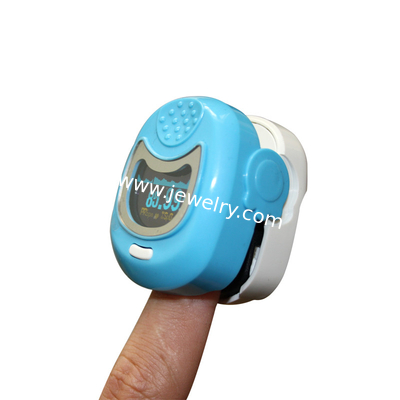

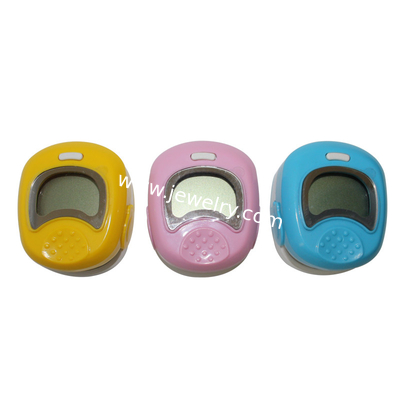

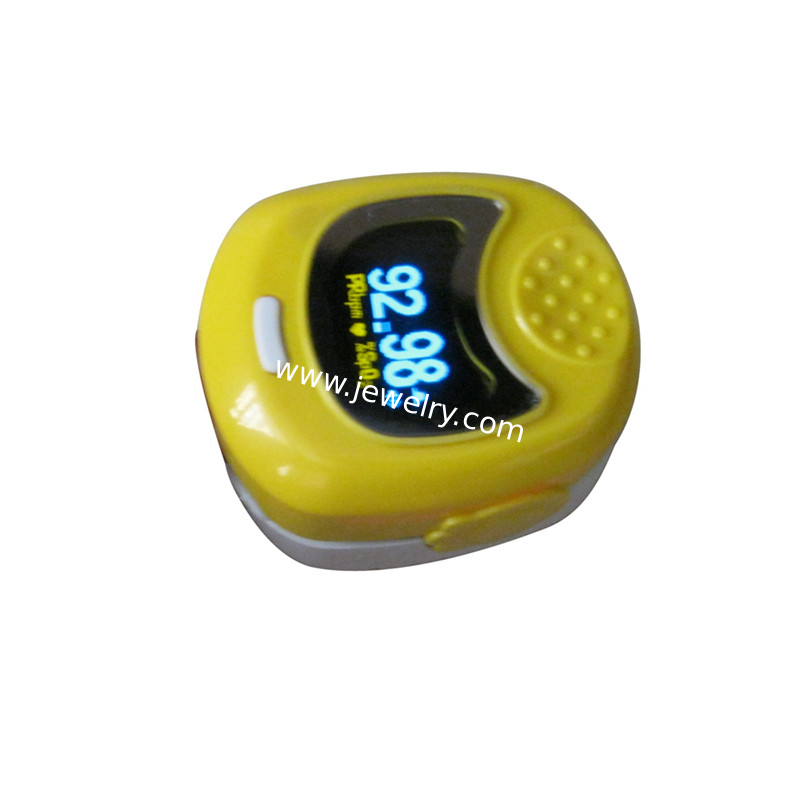

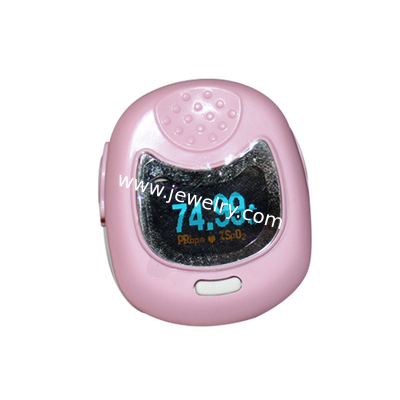

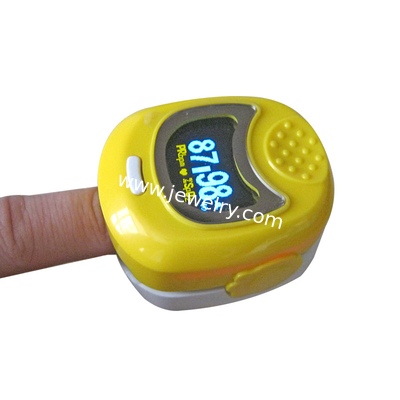

Pulse oximeter
Model:AH-50QB
Major Features
*Integrated with SpO2 probe and processing display module
*Small in volume,light in weight and convenient in carrying
*Operation of the product is simple, low power consumption
*SpO2 value display
*Pulse rate value display, bar graph display
*Pulse waveform display
*The display mode can be changed
*With measured data overruns limits and low-voltage alarm function
*Low-voltage indication: low-voltage indicator appears before working abnormally which is due to low-voltage
*Automatically power off function: when the device is under the state of measuring interface . it will automatically power off within 5 seconds if the finger falls out of probe
*Display format can be saved after power off
*Small appearance,more fit for children
Main performance
Display Mode: 0.96"Dual-color OLED display
Screen Resolution: 128*64
SpO2 Measuring Range: 0%~100%, (the resolution is 1%).
Accuracy: 70%~100%: +/-2% ,Below 70% unspecified.
PR Measuring Range: 30bpm~250bpm, (the resolution is 1bpm)
Accuracy: +/-2bpm or +/-2% (select larger)
Measurement Performance in Weak Filling Condition:
SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is +/-4%, pulse rate error is +/-2 bpm or +/-2% (select larger).
Resistance to Surrounding Light: The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less than +/-1%.
Power Consumption: less than 80mA
Voltage: DC 3.6V~4.2V
Power Supply: Voltage 3.6 rechargeable lithium battery * 1
Battery Working Hour: 6 hours
Battery working life: Charge and discharge no less than 300 times.
Safety Type: Interior Battery, BF Type
Accessories
Sell in standard:
*A hanging rope
*A user manual
*One rechargeable buttony lithium battery
*Charge accessories: One power adapter, one charger, one data line
Physical Identity
Dimension: 46(L) * 40(W) * 29(H) mm
Weight: About 35g (with a rechargeable buttony battery)
Qualification
Passed CE
