Bluetooth oximeter Bluetooth transmission data to the computer AH-50FW

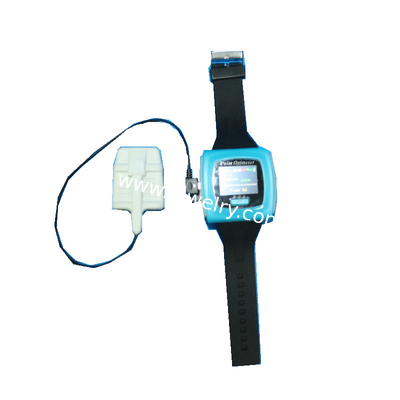

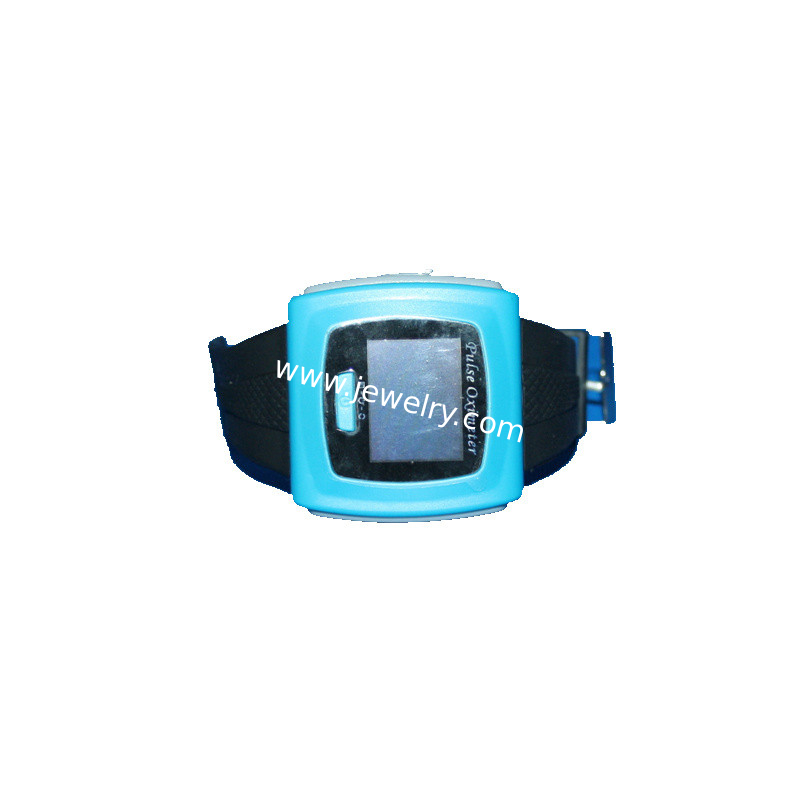

Pulse oximeter

Model:AH-50FW

nstructions

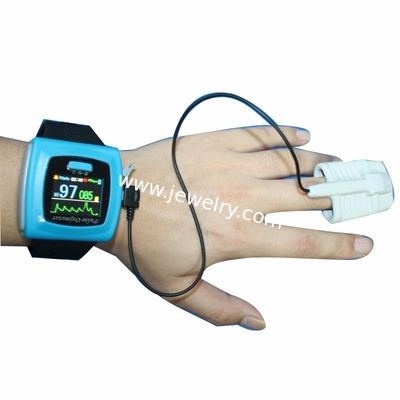

Principle of the CMS50F Pulse Oximeter is as follows: Photoelectric Oxyhemoglobin Inspection Technology is adopted in accordance with Capacity Pulse Scanning & Recording Technology,the Pulse Oximeter can be used in measuring the pulse oxygen saturation and pulse rate through finger.The product is suitable for being used in family, hospital, oxygen bar, community healthcare, physical care in sports (It can be used before or after doing sports, and it is not recommended to use the device during the process of having sport) and etc.

Major Features

*Small in volume,light in weight and convenient in carrying

*Operation of the product is simple ,low power consumption

*SpO₂ value display

*Pulse rate value display, bar graph display

*Pulse waveform display

*The display mode can be changed

*Screen brightness can be changed

*A pulse rate sound indication

*With measured data overruns limits and low-voltage alarm function,the upper/down alarm range can be adjustable

*With clock function

*Battery capacity indication

*Low-voltage indication: low-voltage indicator appears before working abnormally which is due to low-voltage,and with alarm function

*With SpO₂ value and pulse rate value of storage, the storage data can be uploaded to computers)

*Real-time data can be transmitted to computers

*Connected with an external oximeter probe

Main performance

*Display Mode:65K Color OLED display

*Screen Resolution:128*96

*SpO₂ Measuring Range:0%～100%, (the resolution is 1%).

*Accuracy:70%～100%:±2% ,Below 70% unspecified.

*PR Measuring Range:30bpm～250bpm, (the resolution is 1bpm)

*Accuracy:±2bpm or ±2% (select larger)

*Measurement Performance in Weak Filling Condition:SpO₂ and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO₂ error is ±4%, pulse rate error is ±2 bpm or ±2% (select larger).

*Resistance to surrounding light: The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less than ±1%.

*Power Consumption:less than 100mA

*Voltage:DC 3.6V～4.2V

*Power Supply:Voltage 3.7 rechargeable lithium battery × 1

*Battery working hour:20 hours

*Battery working life:Charge and discharge no less than 500 times.

*Safety Type:Interior Battery,BF Type

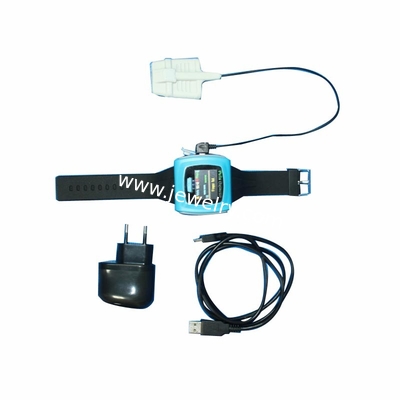

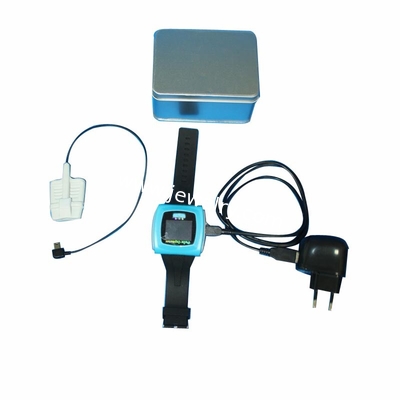

Accessories

Sell in standard

*a user manual

*a USB line

*a wristband

*a disk (PC software)

*An adult-oximeter probe

*a power adapter(GTM41076-0605;CMS0105)

*a wristband

Sell in addition

Other oximeter probe(Refer to probe application instruction for details and notice renewal)

Physical Identity

Dimension:61(L) × 56(W) × 24 (H) mm

Weight:About 50g (with the lithium battery*1)
