| Place of Origin: | GUANDONG,CHINA |
| Brand Name: | HUGE OEM ODM |
| Certification: | CE RoHS |
| Model Number: | AH-50E |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 57-65USD/PC |
| Packaging Details: | box |
| Delivery Time: | 5-7days |
| Payment Terms: | TT /paypay/ Western Union |
| Supply Ability: | 10000pcs/weeks |

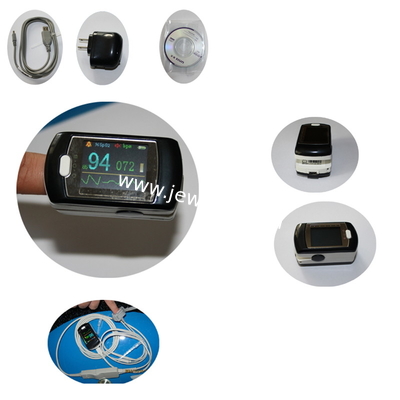

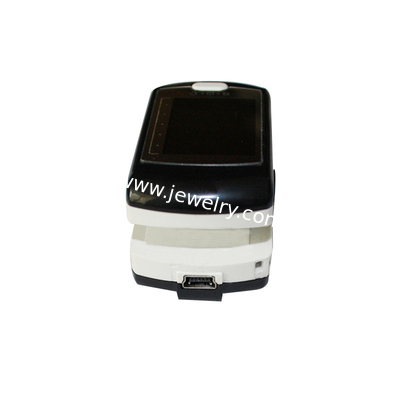

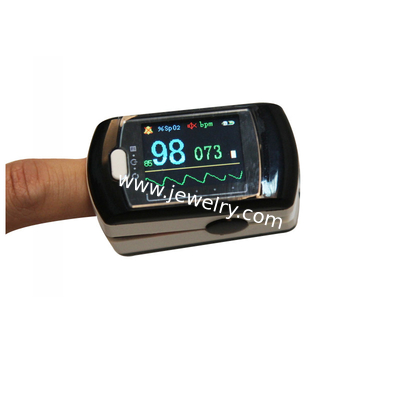

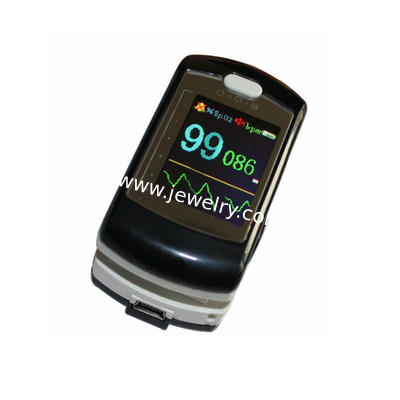

Pulse oximeter
Model:AH-50E
Major Features
*Integrated with SpO2 probe and processing display module
*Small in volume,light in weight and convenient in carrying
*Operation of the product is simple ,low power consumption
*Operation menu for the function setting
*SpO2 value display
*Pulse rate value display, bar graph display
*Pulse waveform display
*The display mode can be changed
*Screen brightness can be changed
*A pulse rate sound indication
*With measured data overruns limits and low-voltage alarm function, the upper/down alarm range is adjustable
*Battery capacity indication
*Low-voltage indication: low-voltage indicator appears before working abnormally which is due to low-voltage, and with alarm function
*With SpO2 value and pulse rate value of storage, the storage data can be uploaded to computers
*Real-time data can be transmitted to computers
*Automatically power off function: when the device is under the state of measuring interface . it will automatically power off within 5 seconds if the finger falls out of probe
*Wireless communication
*RF Wireless communication function(Option)(Only applied for Ver6.6R or above)
*Connected with an external oximeter probe(Option)
Main performance
Display Mode: 1.3" 65K Color OLED display
Screen Resolution: 128*96
SpO2 Measuring Range: 0%~100%, (the resolution is 1%).
Accuracy: 70%~100%: +/-2% ,Below 70% unspecified.
PR Measuring Range: 30bpm~250bpm, (the resolution is 1bpm)
Accuracy: +/-2bpm or +/-2% (select larger)
Measurement Performance in Weak Filling Condition:
SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is +/-4%, pulse rate error is +/-2 bpm or +/-2% (select larger).
Resistance to Surrounding Light: The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less than +/-1%.
Power Consumption: less than 100mA
Voltage: DC 3.6V~4.2V
Power Supply: Voltage 3.7 rechargeable lithium battery x 1
Battery Working Hour: 20 hours
Battery working life: Charge and discharge no less than 500 times.
Safety Type: Interior Battery, BF Type

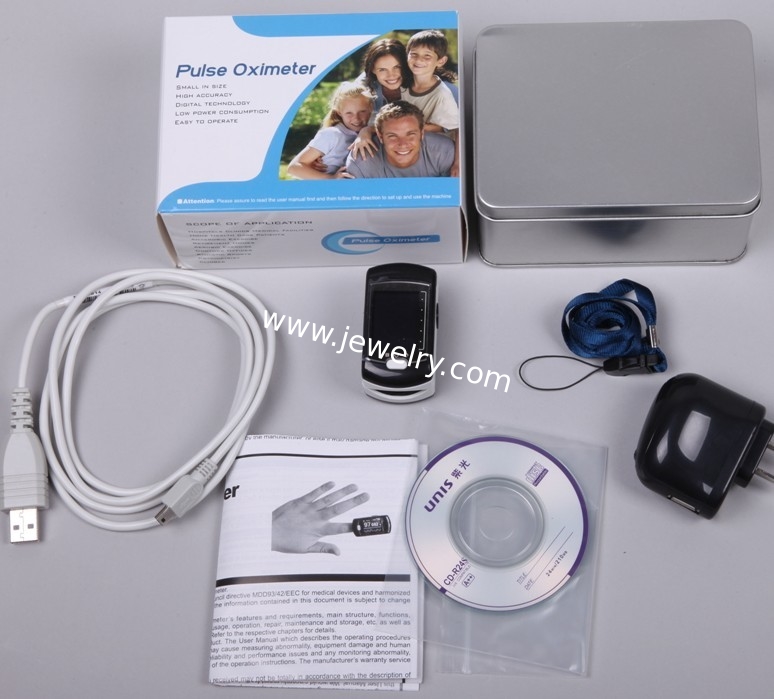

Accessories
Sell in standard:
*A hanging rope
*A user manual
*A data line

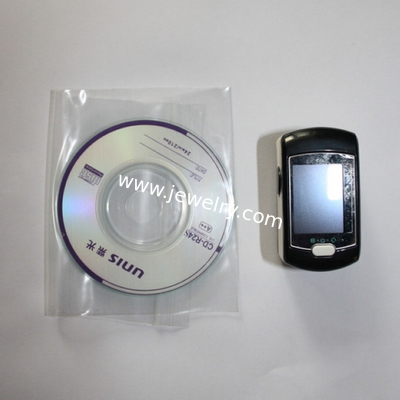

*A disk (PC software)
*A power adapter
Sell in addition:
*Oximeter probe(Refer to probe application instruction for details and notice renewal)
*RF wireless module
Physical Identity
Dimension: 57(L) x 32(W) x 30 (H) mm
Weight: About 50g (with the lithium battery*1)
Qualification
passed FDA and CE
