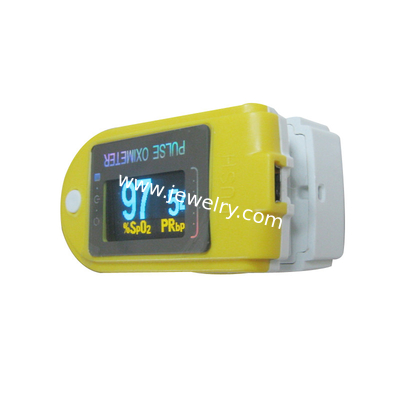

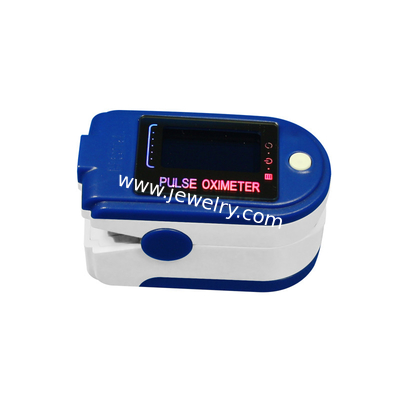

Oximeter with USB connector Pulse Oximeter AH-50DL PLUS

Oximeter with USB connector Pulse Oximeter AH-50DL PLUS

    • Oximeter with USB connector Pulse Oximeter AH-50DL PLUS
    • Oximeter with USB connector Pulse Oximeter AH-50DL PLUS
    • Oximeter with USB connector Pulse Oximeter AH-50DL PLUS
    • Oximeter with USB connector Pulse Oximeter AH-50DL PLUS
    • Oximeter with USB connector Pulse Oximeter AH-50DL PLUS
    • Oximeter with USB connector Pulse Oximeter AH-50DL PLUS
    • Oximeter with USB connector Pulse Oximeter AH-50DL PLUS
  • Oximeter with USB connector Pulse Oximeter AH-50DL PLUS

    Product Details:

    Place of Origin: GUANDONG,CHINA
    Brand Name: HUGE OEM ODM
    Certification: CE RoHS
    Model Number: AH-50DL PLUS

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: 11.5-15USD/PC

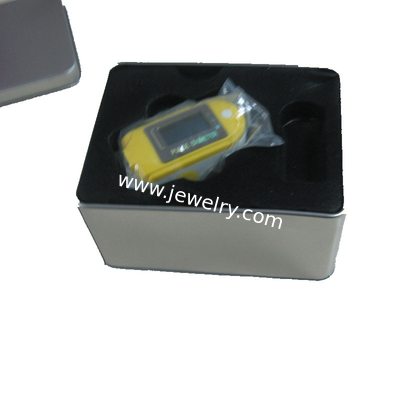

    Packaging Details: box
    Delivery Time: 5-7days
    Payment Terms: TT /paypay/ Western Union
    Supply Ability: 10000pcs/weeks
    Contact Now
    Detailed Product Description



    Pulse oximeter

    Model:AH-50DL PLUS



    Major Features

    *Integrated with SpO2 probe and processing display module
    *Small in volume ,light in weight and convenient in carrying
    *Operation of the product is simple ,low power consumption
    *Operation menu for the function setting
    *SpO2 value display
    *Pulse rate value display, bar graph display
    *Pulse waveform display
    *The display mode can be changed
    *A pulse rate sound indication
    *With measured data overruns limits and low-voltage alarm function, the upper/down alarm range is adjustable
    *Low-voltage indication: low-voltage indicator appears before working abnormally which is due to low-voltage, and with alarm function
    *With SpO2 value and pulse rate value of storage, the storage data can be uploaded to computers
    *Real-time data can be transmitted to computers
    *Automatically power off function: when the device is under the state of measuring interface . it will automatically power off within 5 seconds if the finger falls out of probe
    *RF Wireless communication function(Option)
    *Connected with an external oximeter probe(Option)

    Main performance

    Display Mode: 0.96" Dual color OLED display
    Screen Resolution: 128*64
    SpO2 Measuring Range: 0%~100%, (the resolution is 1%).
    Accuracy: 70%~100%: +/-2% ,Below 70% unspecified.
    PR Measuring Range: 30bpm~250bpm, (the resolution is 1bpm)
    Accuracy: +/-2bpm or +/-2% (select larger)
    Measurement Performance in Weak Filling Condition:
    SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is +/-4%, pulse rate error is +/-2 bpm or +/-2% (select larger).
    Resistance to Surrounding Light: The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less than +/-1%.
    Power Consumption: less than 80mA
    Voltage: DC 3.0V
    Power Supply: 1.5V (AAA size) alkaline batteries *2
    Battery Working Hour: The minimum continually work time is 24 hours , theoretical number is 32 hours.
    Safety Type: Interior Battery, BF Type

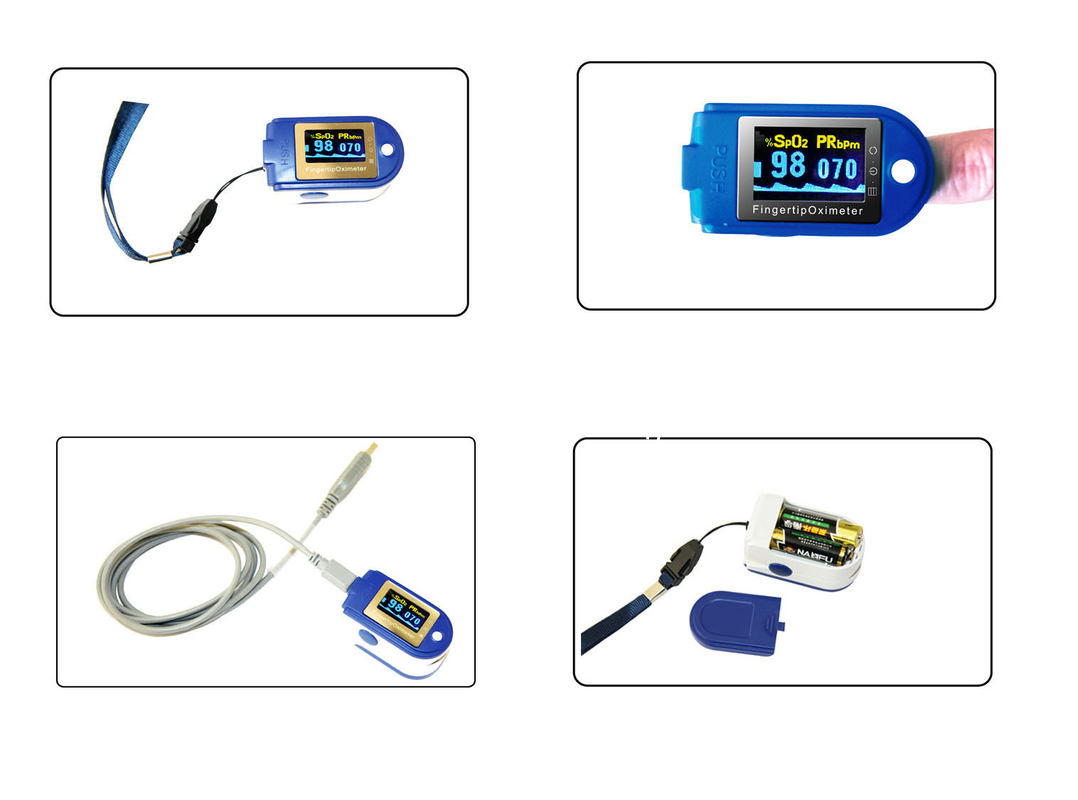

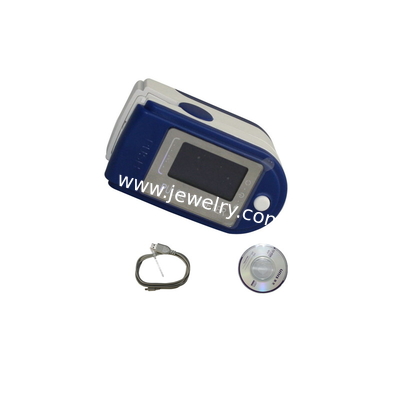

    Accessories

    Sell in standard:
    *A hanging rope
    *A user manual
    *A data line
    *A disk (PC software)
    Sell in addition:
    *RF wireless module
    *Oximeter probe(Refer to probe application instruction for details and notice renewal)

    Physical Identity
    Dimension: 58.5(L) *31(W) *32 (H) mm
    Weight: About 52g (with the batteries)

    Qualification

    Passed CE

    Oximeter with USB connector Pulse Oximeter AH-50DL PLUSOximeter with USB connector Pulse Oximeter AH-50DL PLUSOximeter with USB connector Pulse Oximeter AH-50DL PLUSOximeter with USB connector Pulse Oximeter AH-50DL PLUS
