Pulse oximeter AH-50B

Pulse oximeter AH-50B

    • Pulse oximeter AH-50B
    • Pulse oximeter AH-50B
    • Pulse oximeter AH-50B
    • Pulse oximeter AH-50B
    • Pulse oximeter AH-50B
  • Pulse oximeter AH-50B

    Product Details:

    Place of Origin: China
    Brand Name: HUGE OEM ODM
    Certification: CE RoHS
    Model Number: AH-50B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Price: 10-30USD/PC
    Packaging Details: box
    Delivery Time: within 5 working days after get payment
    Payment Terms: TT /paypay/ Western Union
    Supply Ability: 10000pcs/weeks
    Contact Now
    Detailed Product Description

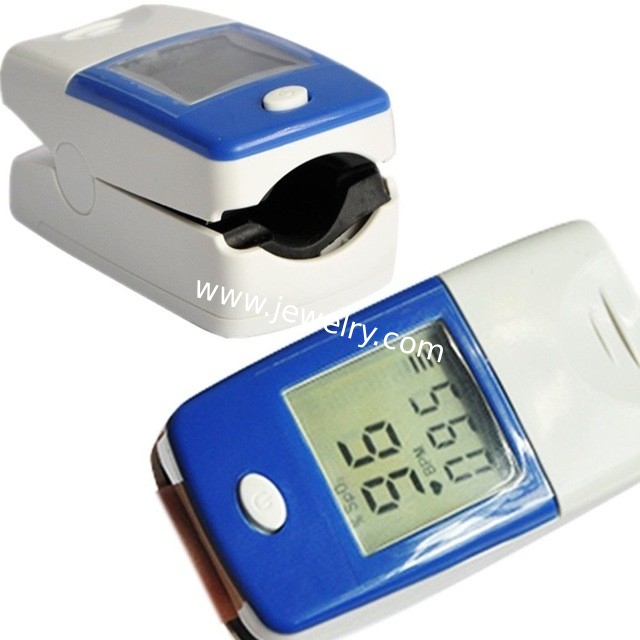

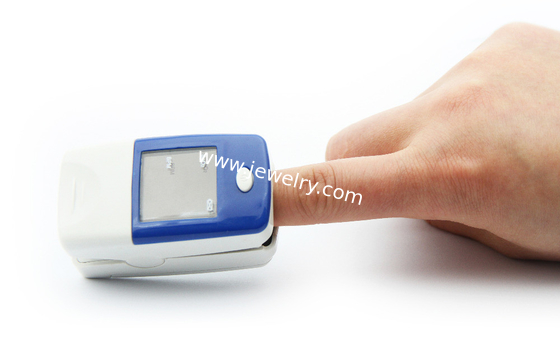

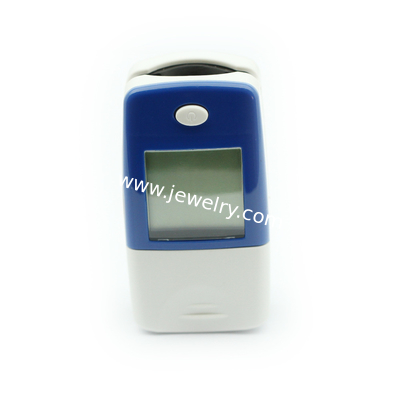

    Pulse oximeter AH-50B



    Major Features

    *Integrated with SpO2 probe and processing display module
    *Small in volume,light in weight and convenient in carrying
    *Operation of the product is simple ,low power consumption
    *SpO2 value display
    *Pulse rate value display, bar graph display
    *Low-voltage indication: low-voltage indicator appears before working abnormally which is due to low-voltage
    *Automatically power off function: when the device is under the state of measuring interface . it will automatically power off within 5 seconds if the finger falls out of probe

    Main performance

    Display Mode: Segment LCD display
    SpO2 Measuring Range: 0%~100%, (the resolution is 1%).
    Accuracy: 70%~100%: +/-2% ,Below 70% unspecified.
    PR Measuring Range: 30bpm~250bpm, (the resolution is 1bpm)
    Accuracy: +/-2bpm or +/-2% (select larger)
    Measurement Performance in Weak Filling Condition:
    SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is +/-4%, pulse rate error is +/-2 bpm or +/-2% (select larger).
    Resistance to Surrounding Light: The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less than +/-1%.
    Power Consumption: less than 20mA
    Voltage: DC 3.0V
    Power Supply: 1.5V (AAA size) alkaline batteries * 2
    Battery Working Hour: The minimum continually work time is 30 hours,theoretical number is 42 hours.
    Safety Type:Interior Battery, BF Type

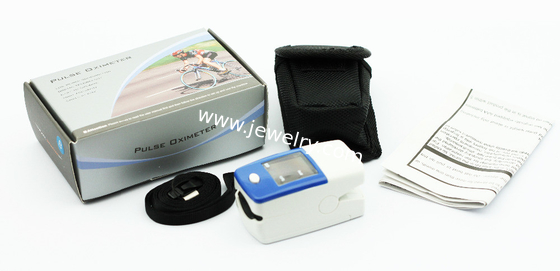

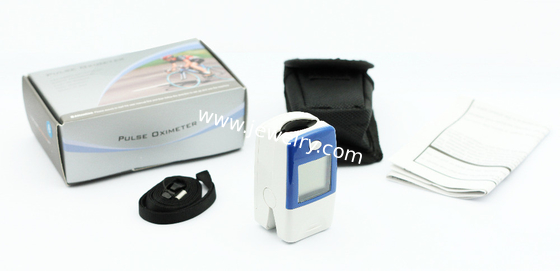

    Accessories

    Sell in standard:
    *A hanging rope
    *A user manual

    Physical Identity
    Dimension: 66(L) * 36(W) * 33(H) mm
    Weight: About 50g (with the batteries)

    Qualification
    Passed CE
