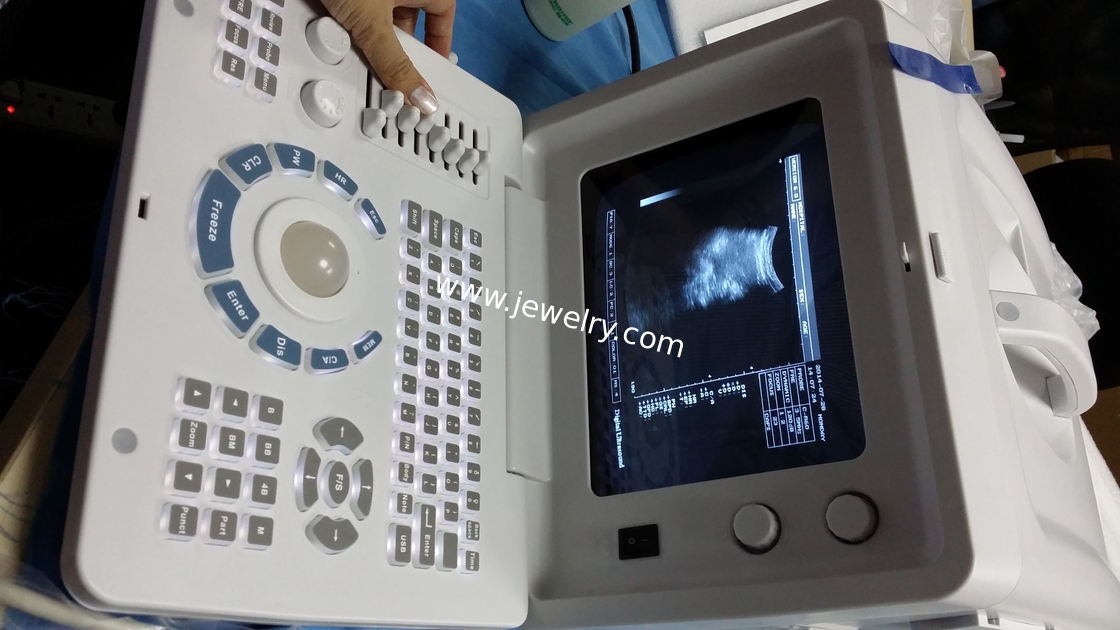

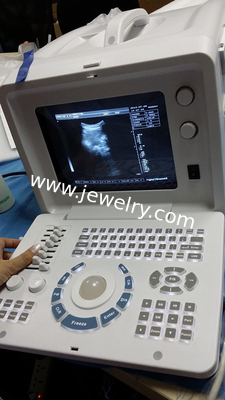

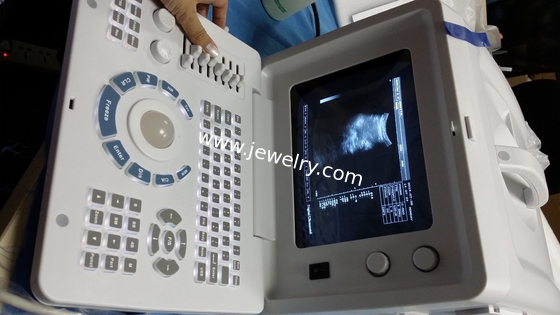

CLS-2180 Portable Ultrasound Scanner

CLS-2180 Portable Ultrasound Scanner

Main features:

Probe: 80 elements R60, 3.5 MHz multi-frequency convex probe; 2 probe connectors, Probe automatic identification;
Focus: 4 segments dynamic electron focusing; double encoder regulations;
Frequency Conversion: 2.5MHz/ 3.0MHz /3.5MHz/ 4.0MHz/ 5.0MHz;
Image Processing: variable aperture, dynamic apodization, dynamic filter, edge enhancement, digital space-time filter, 8 γ corrections, 16 pseudo colors, line correlation, frame correlation, point correlation, linear interpolation, etc.
Measurement & Note: Distance, circumference /area (method of ellipse, method of loci), heart rate, gestational weeks, expected date of confinement and fetus weight, etc; Chinese-English transformation; full-screen character annotation; with report page;
Gain Control: 8 segments TGC control, GAIN control or near field, distant field and overall gain can be adjusted;
Image polarity: left and right flip, black and white flip, up and down flip;
Permanent Storage: 128 images;
Cine loop: 256 frames or check one by one;
Output interface: 2 SVGA video outputs and 2 PAL video outputs offer connection to PAL display, video printer, video image recorder and image workstation, etc.

Standard configuration:

One host machine
·One 3.5 MHz convex array probe
Extended Function:

Optional USB function, printer function, 6.5MHz trans-vaginal probe, 7.5MHz linear probe, 7.5MHz rectal probe, mobile trolley, video printer, and ultrasonic image workstation, etc.

Product size:41*30*26.5cm 9kg Cartoon size:48*38*41cm
