Place of Origin: | China |
Brand Name: | HUGE OEM ODM |
Certification: | CE RoHS |
Model Number: | DS-FS20A |
Minimum Order Quantity: | 100pcs |
---|---|
Price: | USD8-78/PC FOB SHENZHEN |
Packaging Details: | box |
Delivery Time: | 15-30 days |
Payment Terms: | TT /paypay/ Western Union |
Supply Ability: | 10000 Piece/Pieces per Month |
Model:DS-FS20A
Product Description:
Fingertip Pulse Oximeter DS-FS10A fda ce approved oled display mini portable clip spo2 sensor/probe monitor handheld fingertip/finger pulse oximeter manufacturer

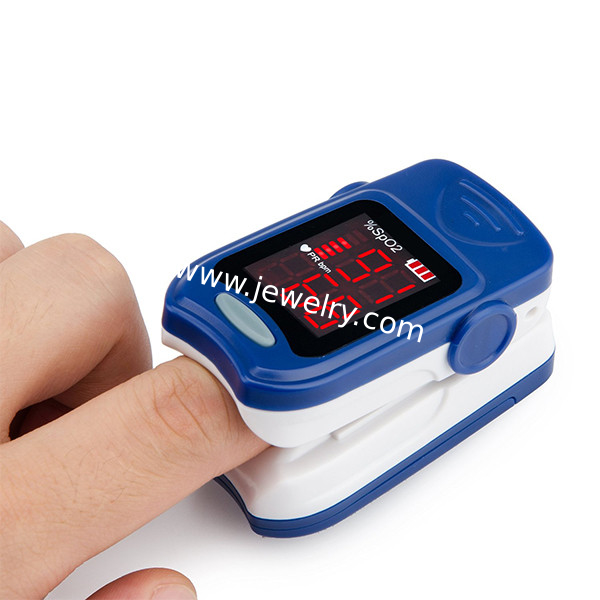

The DS-FS10A is configured Red LED, whose UI shows the Spo2 and PR parameter, and the Power indication, Pulse bar graph. Ideal used by clinicians, patients, caregivers and consumers. For spot-check applications in personal health and wellness, homecare, hospital and clinics, outdoor activities.
Application:
Spot-check applications in personal health and wellness, homecare, hospital, and clinics, outdoor activities
Features:
· 1. Anti-movement digital signal processing technology
· 2. Accurate pulse oximetry measurements during motion and low perfusion
· 3. LED(DS-FS10A) screen display PR, SPO2, Bar graph
· 4. Reliable accuracy and durability
· 5. Simple operation, real-time spot-checks
· 6. Low power indicator
· 7. Automatic power-off
Specification:
SpO2
· Measurement range:35~100%
· Accuracy: ±2%(70~100%),0~69% unspecified
· Resolution:1%
Pulse Rate
· Measurement range:30-250 bpm
· Accuracy:±2 bpm
· Resolution:1bpm
Blood Perfusion Index performance
· Range:0.2~20%
· Resolution:0.1%
Low Perfusion performance
· Pi >= 0.4% : Spo2 and PR can be detected correctly;
· Pi < 0.4% : Unspecified.
Environment requirement
Operation Environment:
· Temperature:5°C~ +40°C
· Humidity:15% ~ 95%
Storage Environment:
· Temperature:-20°C~ +60°C
· Humidity:10% ~ 95%
Power Requirements
· Work voltage:DC2.5V~ 3V( 2 AAA Battery)
· Work current:< 30mA
Dimension
· 62 (H) x 35 (W) x 31 (D) mm
· Net Weight
· 60g(include batteries)

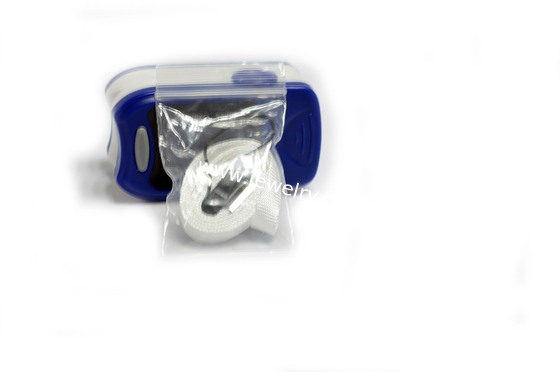

Accessories in standard
· A hanging rope
· A user manual
· Accessories for optional
· 2 AAA Alkaline
· A pouch
Optional colors
· White, blue, orange
