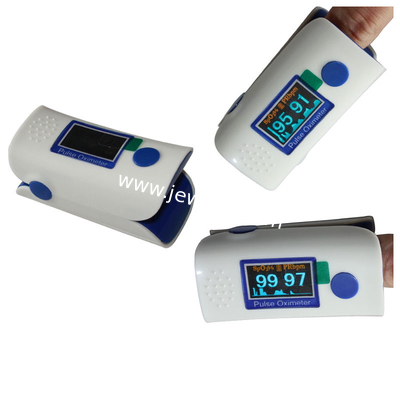

Healthcare Fingertip Pulse Oximeter SPO2 Monitor LED Display AH-8018

Healthcare Fingertip Pulse Oximeter SPO2 Monitor LED Display AH-8018

    • Healthcare Fingertip Pulse Oximeter SPO2 Monitor LED Display AH-8018
    • Healthcare Fingertip Pulse Oximeter SPO2 Monitor LED Display AH-8018
    • Healthcare Fingertip Pulse Oximeter SPO2 Monitor LED Display AH-8018
    • Healthcare Fingertip Pulse Oximeter SPO2 Monitor LED Display AH-8018
  • Healthcare Fingertip Pulse Oximeter SPO2 Monitor LED Display AH-8018

    Product Details:

    Place of Origin: China
    Brand Name: HUGE OEM ODM
    Certification: CE and FDA
    Model Number: AH-8018

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece/Pieces
    Price: US $ 6 - 16 / Piece
    Packaging Details: box
    Delivery Time: 3days upon receipt Payment
    Payment Terms: TT /paypay/ Western Union
    Supply Ability: 10000 Piece/Pieces per Month
    Contact Now
    Detailed Product Description
    Dimension Length: 58mm,width:32mm Storage Temperature: 500F~1040F
    Qualification: Passed CE And FDA Power Requirement: Two AAA 1.5V Alkaline Batteries

    Healthcare Fingertip Pulse Oximeter SPO2 Monitor LED Display





    Major Features



    The Oximeter is calibrated to display functional oxyen saturation.Principle of the Oximeter is as follows:An experience formula of data process is established taking use of Lambert Beer Law according to Spectrum Asorption Characteristics of Reductive hemoglobin(R Hb) and Oxyhemoglobin(O2 Hb) in glow and near-infrared zones.Operation principle of the instrument is Photoelectric Oxyhemoglobin inspection Technolog is adoputed in accordance with Capacity Pulse Scanninng Technology .so that two beams of different wavelength of lights(660nm low and 940nm near infrared linght )can be focused onto human nai tip through perspective clamp finger-type sensor.Then measured signal can be obtained by a photosensitive element,information acquired through wich will be shown on OLED display through proess in electronic circuits and microprocessor.

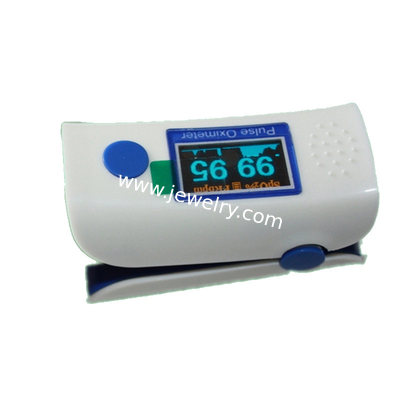

    Healthcare Fingertip Pulse Oximeter SPO2 Monitor LED Display AH-8018



    Main performance



    Display Type :LED display

    -SPO2 Measurement Range:70%~100%

    -Accuracy +/-2% on the stage of 70%~99%

    -Pulse Range Measurement Ranger :25~250BPM

    -Accuracy +/-1BPM or +/-1%(larger)

    Power Requirement:Two AAA 1.5V alkaline batteries

    -Voltage range:2.6~3.6V

    Low Consumption:less than 30mA

    Measurement Accuracy:SPO2 Accuracy +/-2%on the stage of 70%~99%

    -No definition of less than 70%

    -pulse rate +/-1BPM or +/-1%(larger)

    Measurement Performance in low perfusion condition:The pulse wave is available withour failure when the simulation pulse wave amplitude is at 6%.

    Anti-interference ablitity of ambient light:Natural light in indoor lighing and the existing oxygen measurements under dark conditions with the measured values compared to less than 1%



    The product will automatically be powered off when no sigal is in the product for longer than 8 seconds.



    Dimension Length:58mm,width:32mm

    -Weight :54g(including two AAA batteries)

    Enviranment Requirements:Operation Temperature:400F~1040F

    -Storage Temperature:500F~1040F



    Healthcare Fingertip Pulse Oximeter SPO2 Monitor LED Display AH-8018

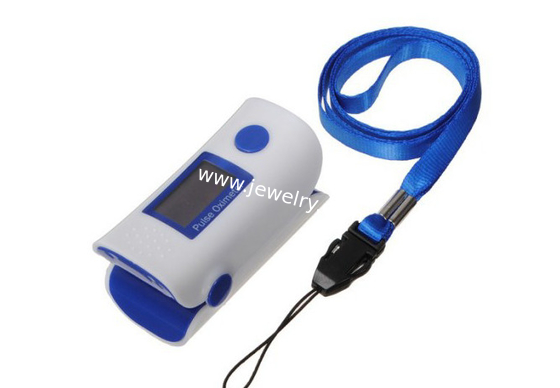

    Accessories



    Sell in standard:
    *A hanging rope
    *A user manual

    Physical Identity
    Dimension: 66(L) * 36(W) * 33 (H) mm
    Weight: About 50g (with the batteries)

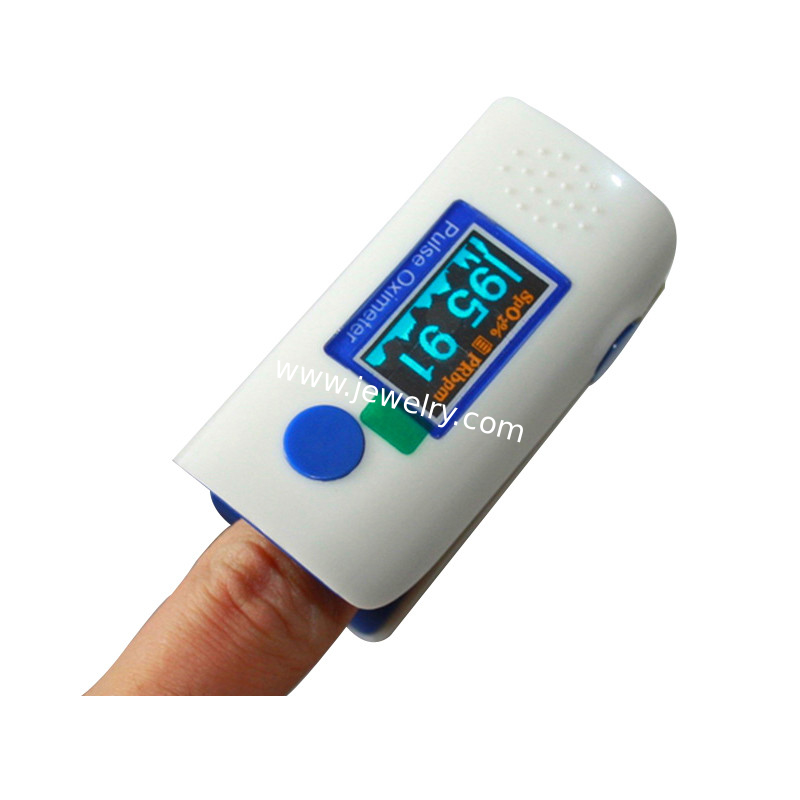

    Healthcare Fingertip Pulse Oximeter SPO2 Monitor LED Display AH-8018



    Qualification



    Passed CE



    Why choose Perfect



    1, Professional
    2. Comprehensive
    3. Accurate
    4. Ahead
    5. Simple

    6. Convenient
    7. Economic

    8. Security

    Any defective products, please contact us to get replacement. We check 100% before we send out the products to you, any defective products can be replaced within warranty period, we will send it out within 7 days after we receive the defective one. Customer is responsible for the returning shipping fee and we will send the replacement after receiving the returned item. Shipping and handling fee cannot be refunded in any case.
    We are not responsible for uninsured lost or damaged during shipment.
